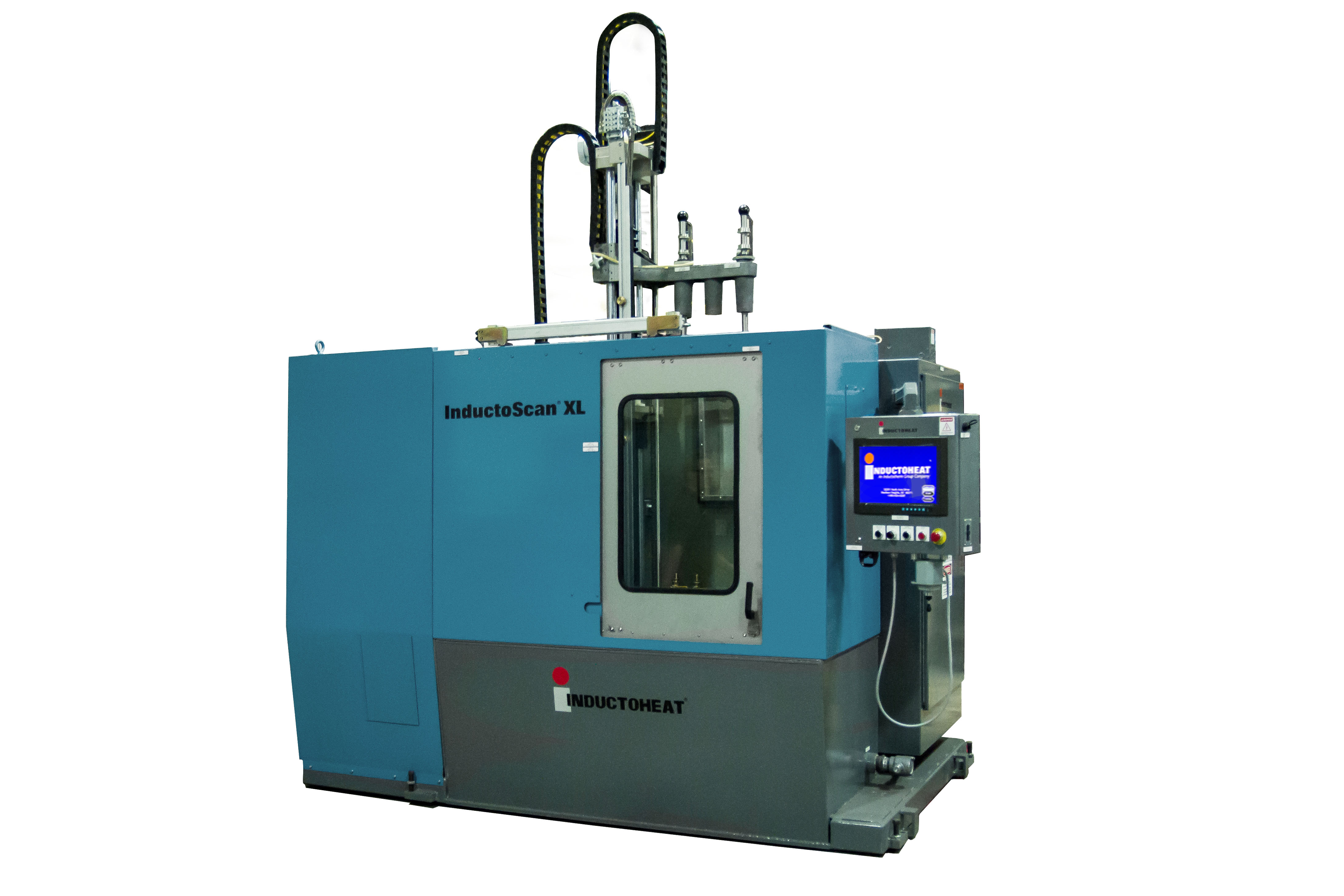

Inductoscan® XL Modular Heat Treating Scanning System

The Inductoscan® XL Modular Heat Treating Scanning System is a heavy-duty induction heating system designed for the most demanding parts. This system is built to accommodate the material handling systems and process requirements associated with large parts. This flexible system can be configured to perform various heat treating operations such as scanning and single-shot. The material handling options for the Inductoscan® scanning system include; manual, robotic, pick and place, rotary table and linear transfer.

REQUEST A QUOTE »

Inductoheat

32251 North Avis Drive, Madison Heights, MI 48071

Features

  • One or two spindle, vertical-scanning precision induction hardening machine
  • Enclosed water cooling and quench recirculation system with filtration for quieter operation
  • Common machine base
  • User friendly controls simplify set-up, changeover and trouble-shooting, includes PLC with industrial computer operator interface
  • Pneumatic controls (optional)
  • Standard process monitoring package

Tech Specs

Standard Power Ratings 100 – 800 kW @ 100 – 400 kHz (w/optional side power supply) 100 – 450 kW @ 3, 10 and 30 kHz 75 – 300 kW @ 50 kHz 50 – 150 kW @ 200 kHz
Dimensions 124” W (3149 mm) x 79 3/8” D (2016 mm)
Tower Scan Length 50” (1270 mm)
Maximum Part Length 45” (1143 mm)
Scanning Speed (Max)/sec 10” (200 mm)
Door Dimensions 30”W (762 mm) x 42”H (1067 mm)
Work piece Capacity/Spindle 125 lbs. (57 kg)
Spindle Center Spacing 12” (305 mm)
Height Tower Up 165” (4191 mm)
Height Tower Down 110” (2794 mm)
Standard Controls Standard PLC with HMI interface with virtually unlimited program recipe storage
Cooling system Closed-loop water recirculating systems with stainless steel tank, stainless steel plate heat exchanger, non-ferrous pump and plumbing

Accessories

  • High pressure booster pump for coil cooling
  • Quick disconnects
  • Servo motor and gearbox driven ball screw
  • Instachange bus adapter
  • Process monitoring signature package
  • Process data archiving
  • Pneumatic door
  • Pneumatic load assist vees
  • Automatic lubrication system
  • Quench filtration upgrade
  • Robotic interlock package
  • 6 Axis 20kg robot
