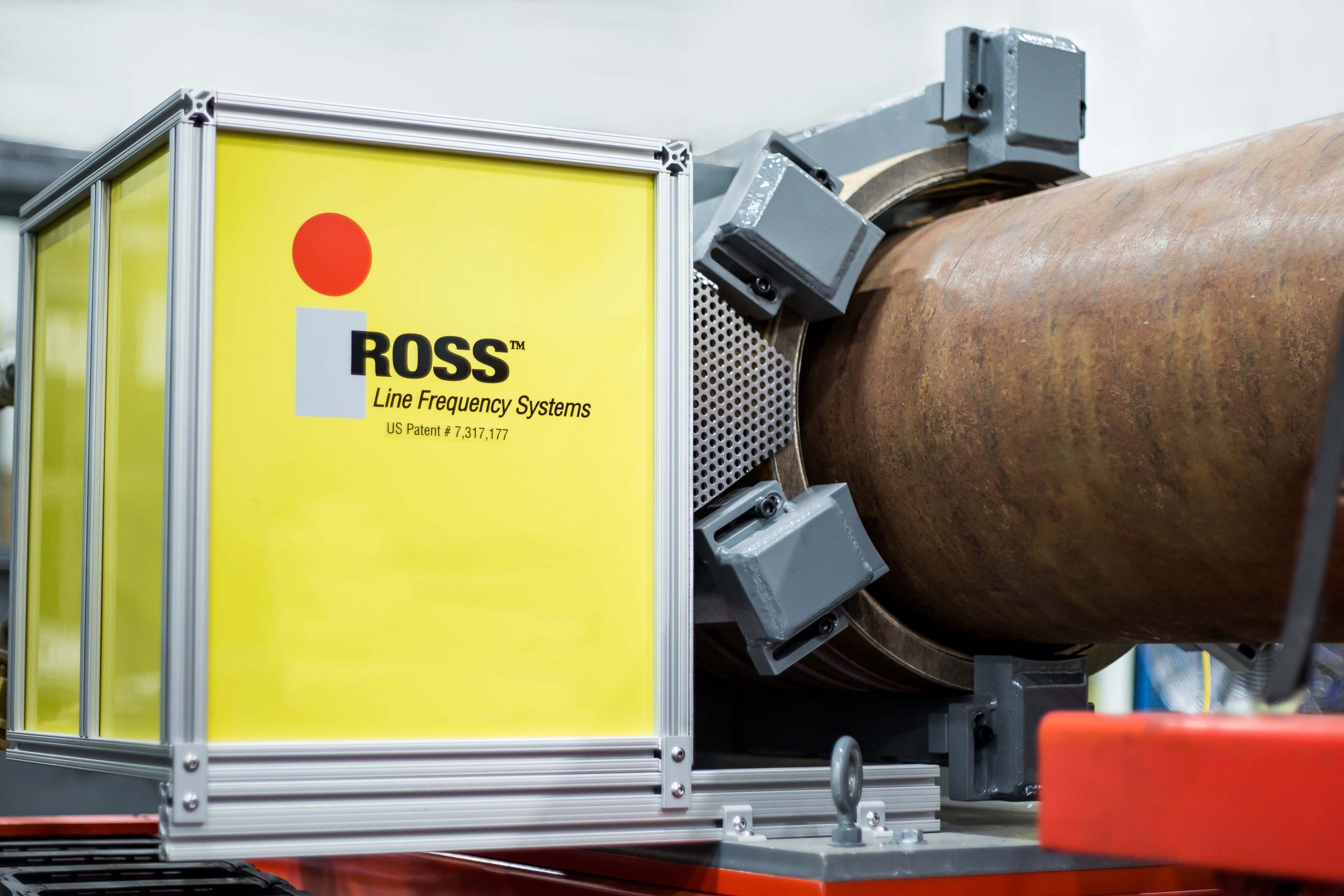

Phase 3™ Tube & Pipe End Heating System

iROSS™ Fluxmanager® Pipe End Heating Units are designed for heating a variety of tubular products. These systems utilize patented Fluxmanager® induction heat treatment technology that yields superior temperature uniformity compared to conventional medium frequency designs.

Applications:

  • Stress relieving
  • Preheat for welding
  • Annealing
  • Normalizing
  • Removal and curing of coatings
  • Friction welding and swage preheating
REQUEST A QUOTE »

Inductoheat

32251 North Avis Drive, Madison Heights, MI 48071

Features

  • Deep and uniform temperature distribution, ID/OD, circumferentially and longitudinally
  • Flexibility: 6 coil diameters cover all OCTG pipe sizes
  • Modular: Robust and unitized system

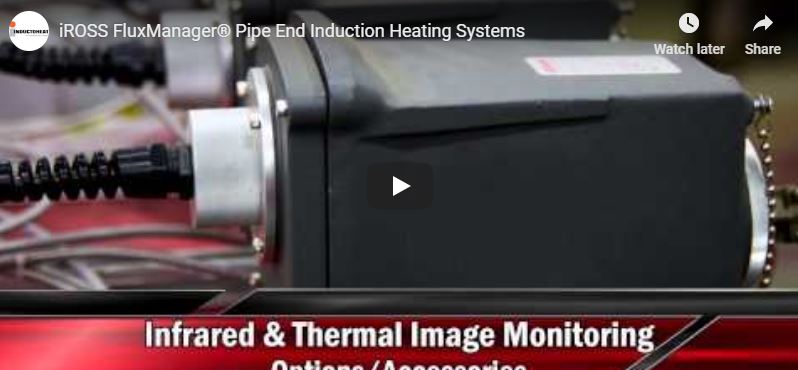

  • Infrared monitoring options
  • Data logging capability for traceability

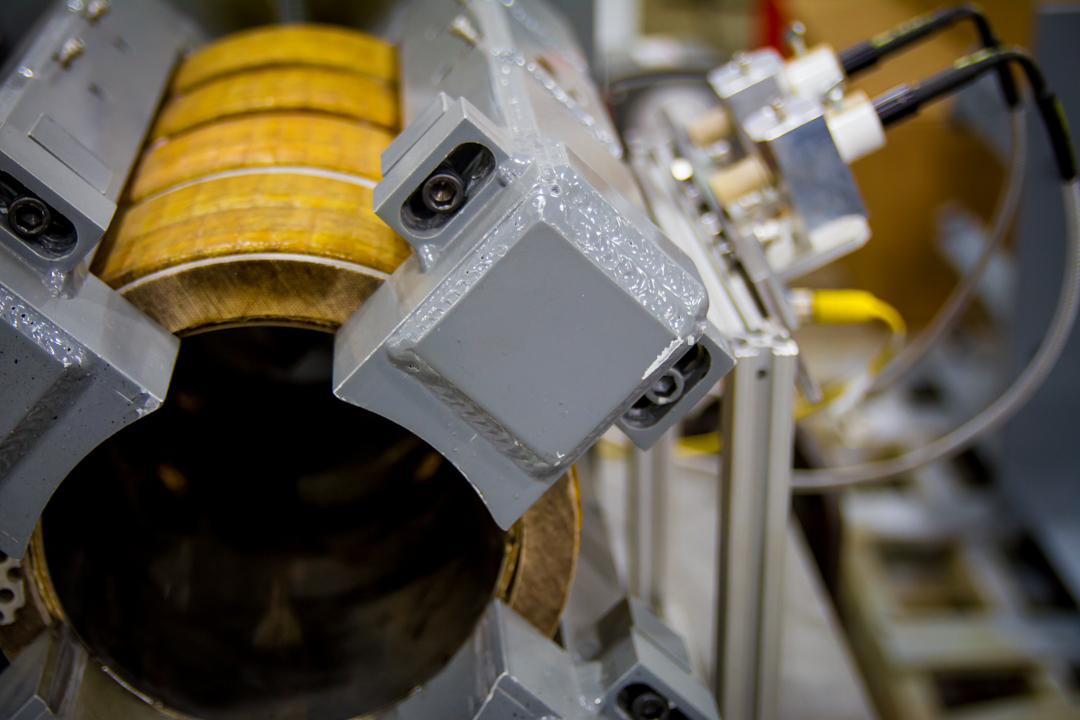

  • Shaped flux concentrator for increased efficiency
  • Versatile: 50 or 60Hz / 380 – 600VAC input
  • Maintains 96.5% electrical efficiency at .95 power factor

Tech Specs

Dimensions (W x D x H) Coil : 76” (1930 mm) x 36” (915 mm) x 80” (2032 mm)
Standard Power Rating 150 kW, Variable 60-150 Hz, 3 Phase
Standard Coil Assembly For Pipe O.D. Sizes: (Other sizes available upon request) # 562         2.375” –   5.625”     (61 – 143 mm)
# 762         4.000”  –  7.625”   (102 – 193 mm)
# 1062     7.625”  –  10.625”   (193 – 269 mm)
# 1462   10.625”  –  14.625”   (269 – 371 mm)
# 1762   14.625”  –  17.625”   (371 – 448 mm)
# 2062   17.625”  –  20.625”   (448 – 524 mm
International voltages are standard

Accessories

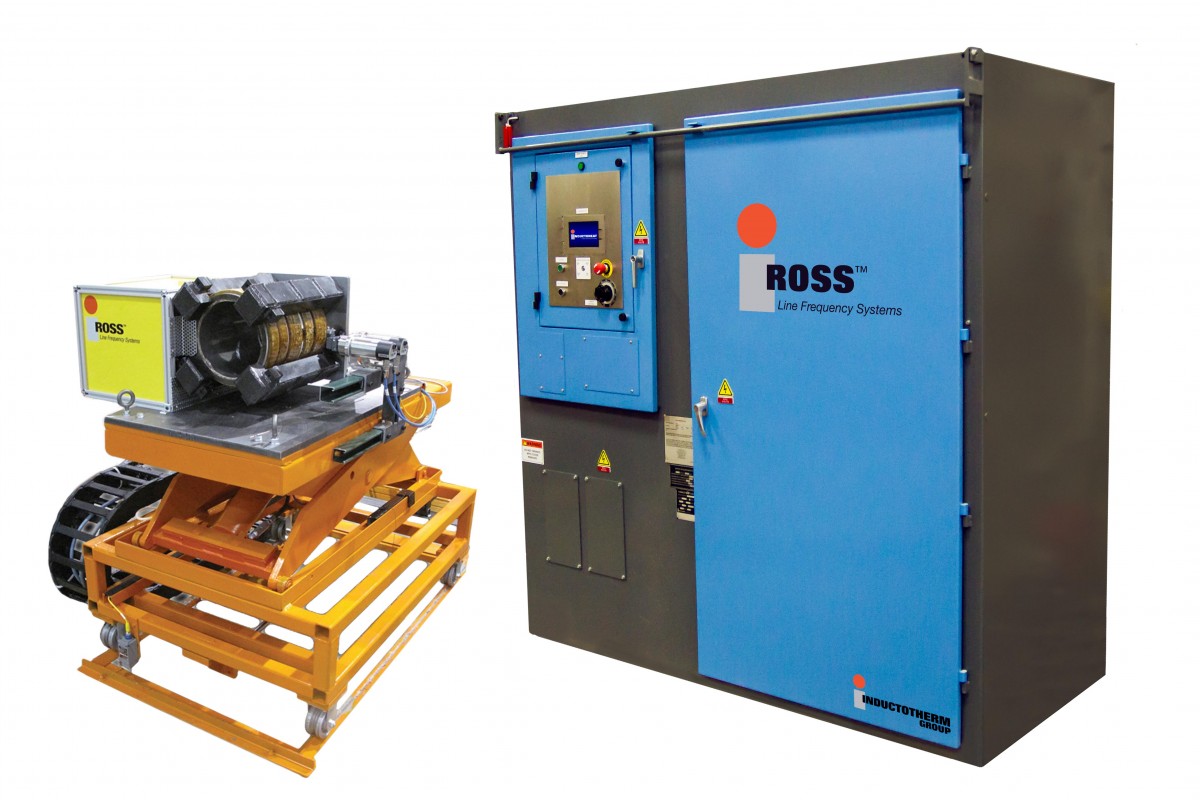

  • Hydraulic lift table
  • Dual coil simultaneous operation
  • Data archival recipe management
  • Pneumatic coil shuttle options
  • Standalone water/chiller system
