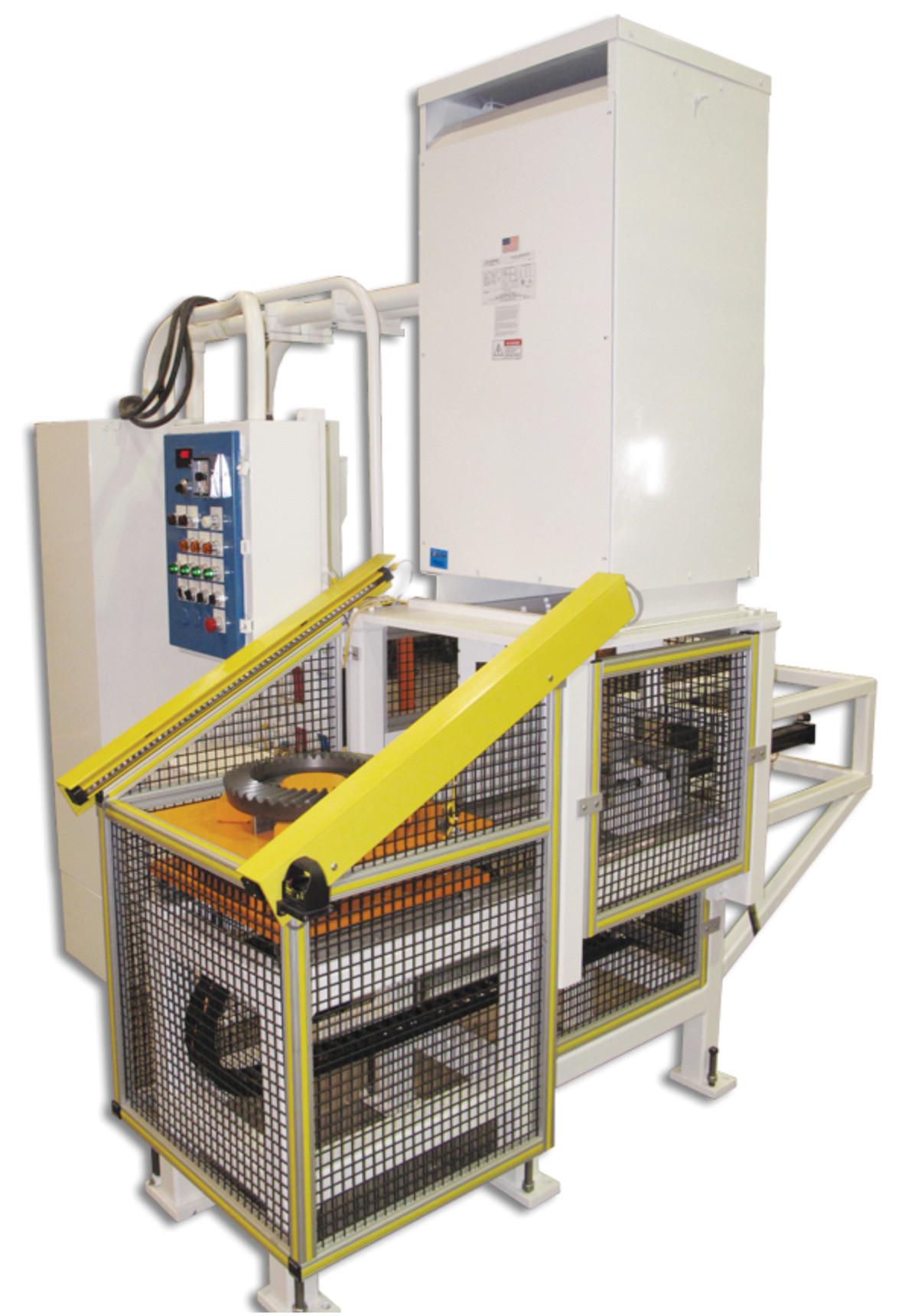

Low Frequency Heating Systems

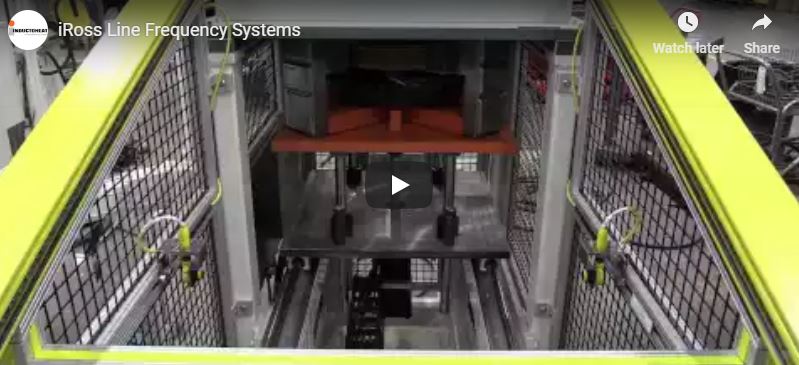

IROSS™ Line Frequency Systems provide unique benefits over other types of induction heating units. Because the IROSS™ systems use low frequency induction (60hZ), they can be used to heat large and irregularly shaped workpieces for a variety of applications. These systems are generally used to achieve temperatures of 120 to 1600 Fahrenheit within a short amount of time, which makes it an attractive alternative to furnace/oven heating. Utilizing a low frequency allows for the heating of a large area as the depth of penetration depth is greater than that of a higher frequency induction system.

Some applications include:

  • Shrink fitting
  • Mold preheating
  • Stress relieving
  • Curing of rubber
  • Varnish curing
  • Magnet bonding
  • Tempering
  • Annealing
  • Pipe-end annealing
  • Pressure vessel heating
  • Preheat for welding
  • Removal of coatings
  • Lamination preheat for die casting & bluing
  • Friction weld and swage stress relieving
  • Shrink fitting for shafts & gears
  • Motor housing disassembly
  • Bonding of rubber to metal

Some Automotive applications include:

  • Camshaft gear assembly
  • Crankshaft gear assembly
  • Starter ring gear assembly

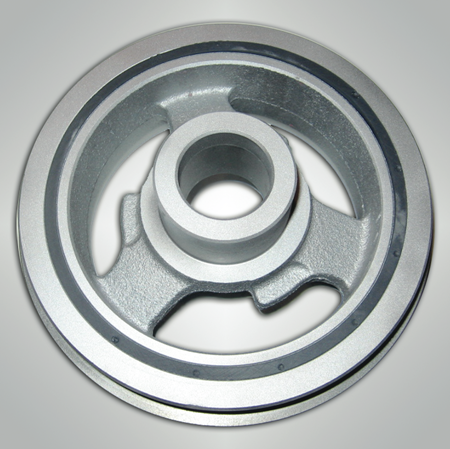

  • Vibration damper bonding
  • Transmission gear assembly
  • Timing ring assembly
  • Crankshaft flange assembly
  • Steering knuckle assembly
  • Shrink fitting of Large /Heavy-truck Differential Gears
REQUEST A QUOTE »

Inductoheat

32251 North Avis Drive, Madison Heights, MI 48071

Tech Specs

Standard Power Ratings (Other sizes available upon request) 25, 50 and 75 kVA, 50/60 Hz, single phase
Machine Dimensions (W x D x H) 32” x 42” x 72” (800mm x 1060mm x 1820mm)
Available Mechanical Modules Part Lift, Part Lower, Coil Lower, Stationary

Accessories

  • Infrared temperature control
  • Energy monitor
  • Custom tooling for armatures, rotors, stators, motor housings, permanent magnet motor bonding, gears and bearings
  • Other mechanical system modules available.
