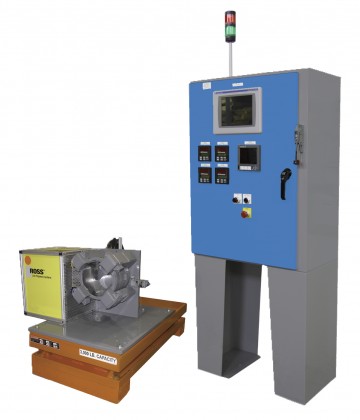

Single Phase Tube & Pipe Heating System

IROSS™ Fluxmanager® Pipe-End Heating Units are designed for heating a variety of tubular products. These systems utilize patented Fluxmanager® induction heat treatment technology that yields superior temperature uniformity compared to conventional medium frequency designs.



Applications:

  • Stress relieving
  • Preheat for welding
  • Annealing
  • Normalizing
  • Removal and curing of coatings
  • Friction welding and swage preheating
REQUEST A QUOTE »

Inductoheat

32251 North Avis Drive, Madison Heights, MI 48071

Features

  • Deep and uniform temperature distribution, ID/OD, circumferentially and longitudinally.
  • Flexibility: 6 coil diameters cover all OCTG pipe sizes
  • Modular: Robust and unitized system
  • Precise fiber-optic temperature monitoring
  • Data logging capability for traceability
  • Shaped flux concentrator for increased efficiency
  • Deionized water NOT required
  • Versatile: 50 or 60Hz / 380 – 600VAC input
  • Minimal amount of water needed – only 8 GPM required for cooling

Tech Specs

Dimensions (W x D x H) Coil (Max) : 40” (1016 mm) x 36” (915 mm) x 30.25” (760 mm)
Standard Power Rating 167 & 192 kVA, 50/60 Hz, Single Phase
Standard Coil Assembly For Pipe O.D. Sizes: (Other sizes available upon request) # 562         2.375” –   5.625”     (61 – 143 mm)
# 762         4.000”  –  7.625”   (102 – 193 mm)
# 1062     7.625”  –  10.625”   (193 – 269 mm)
# 1462   10.625”  –  14.625”   (269 – 371 mm)
# 1762   14.625”  –  17.625”   (371 – 448 mm)
# 2062   17.625”  –  20.625”   (448 – 524 mm
International voltages are standard

Accessories

  • Hydraulic lift table
  • Dual coil simultaneous operation
  • Data archival recipe management
  • Pneumatic coil shuttle options
  • Stand-alone water/chiller system – no deionized water required
