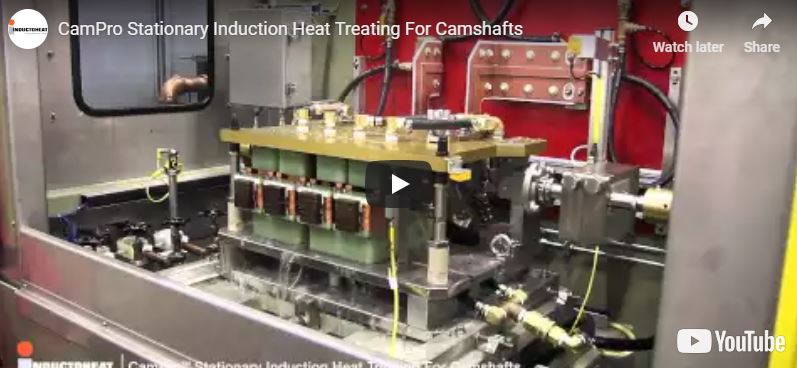

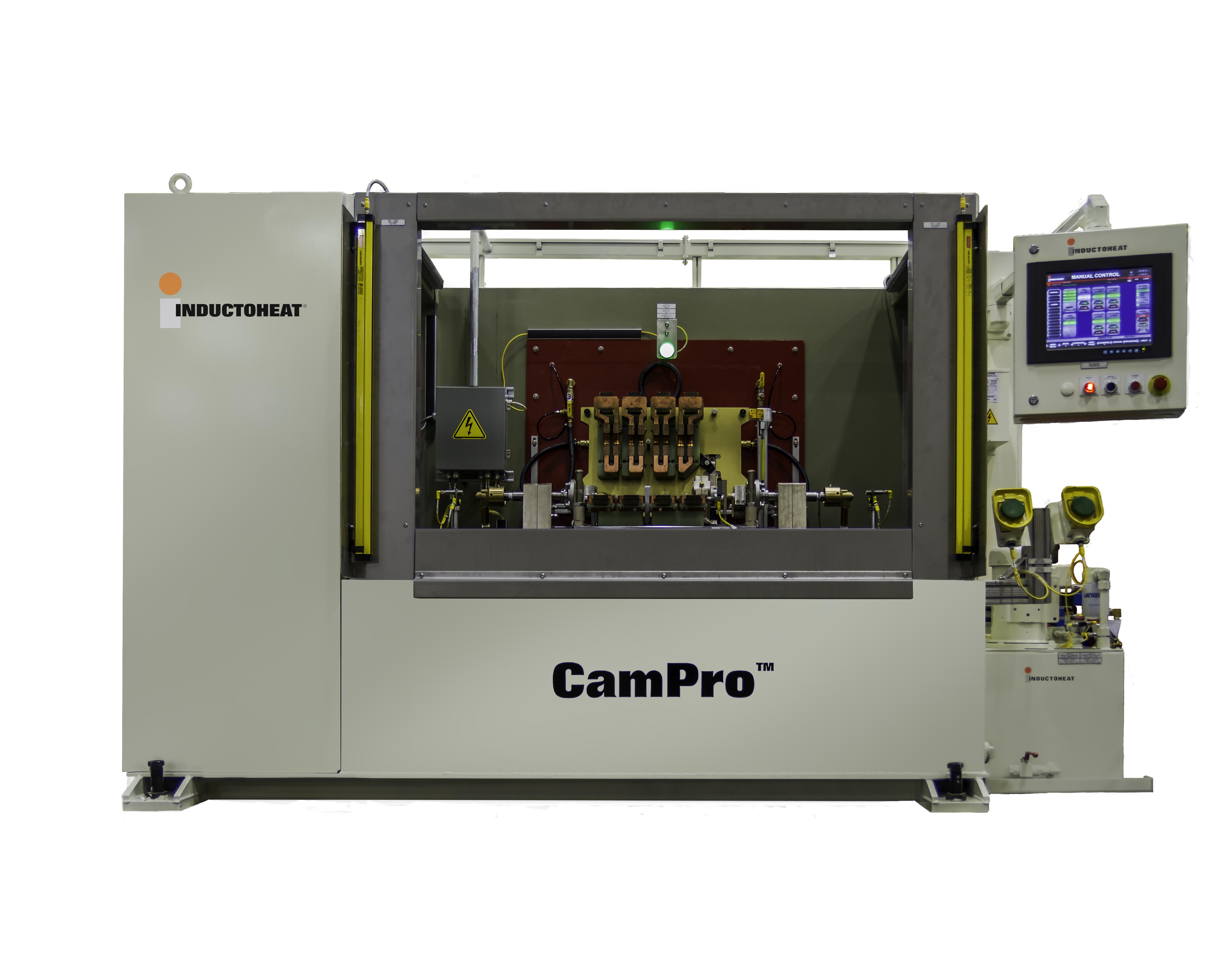

CamPro™ Stationary Induction Camshaft Heat Treating

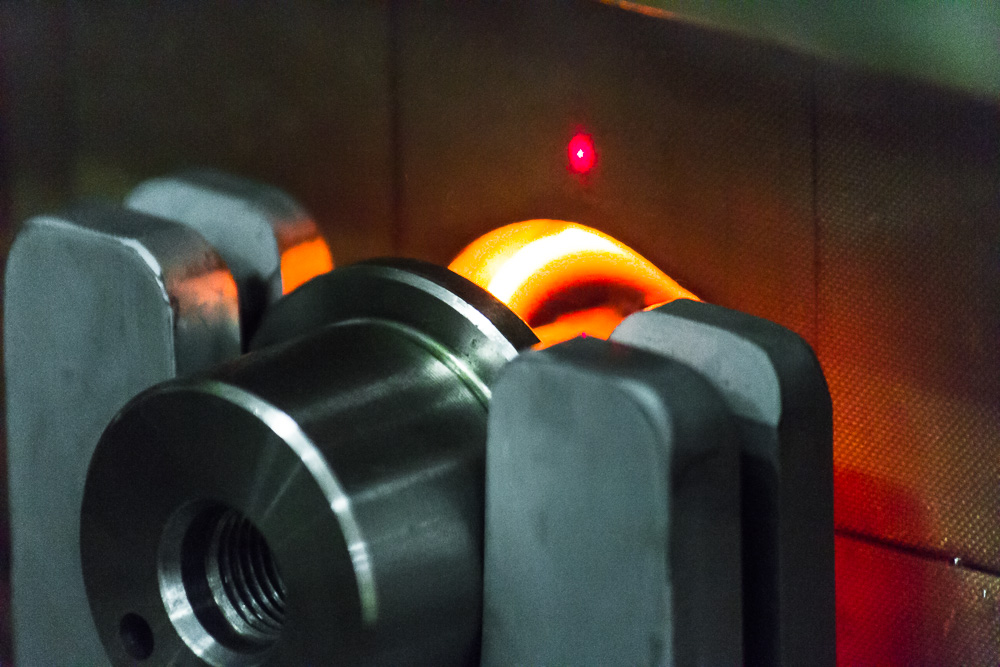

CamPro™ Induction Heating Systems utilize patented SHarP-C™ (Stationary Hardening Process for Camshafts) hardening technology, which eliminates workpiece rotation during the induction heat treating process. There are several practical, economical and technical benefits associated with this unique camshaft heat treating technology including; dramatically reduced maintenance cost, simple operation, longer tooling life, improved part quality and the potential elimination of post heat treat straightening operations.



Increased Production

  • Non-contact / Stationary Hardening
  • Only 1 moving part (Open/Close)
  • Increased throughput – Short heat times – less than 4 seconds
  • Production rates up to 90 parts/ hour

Improved Quality

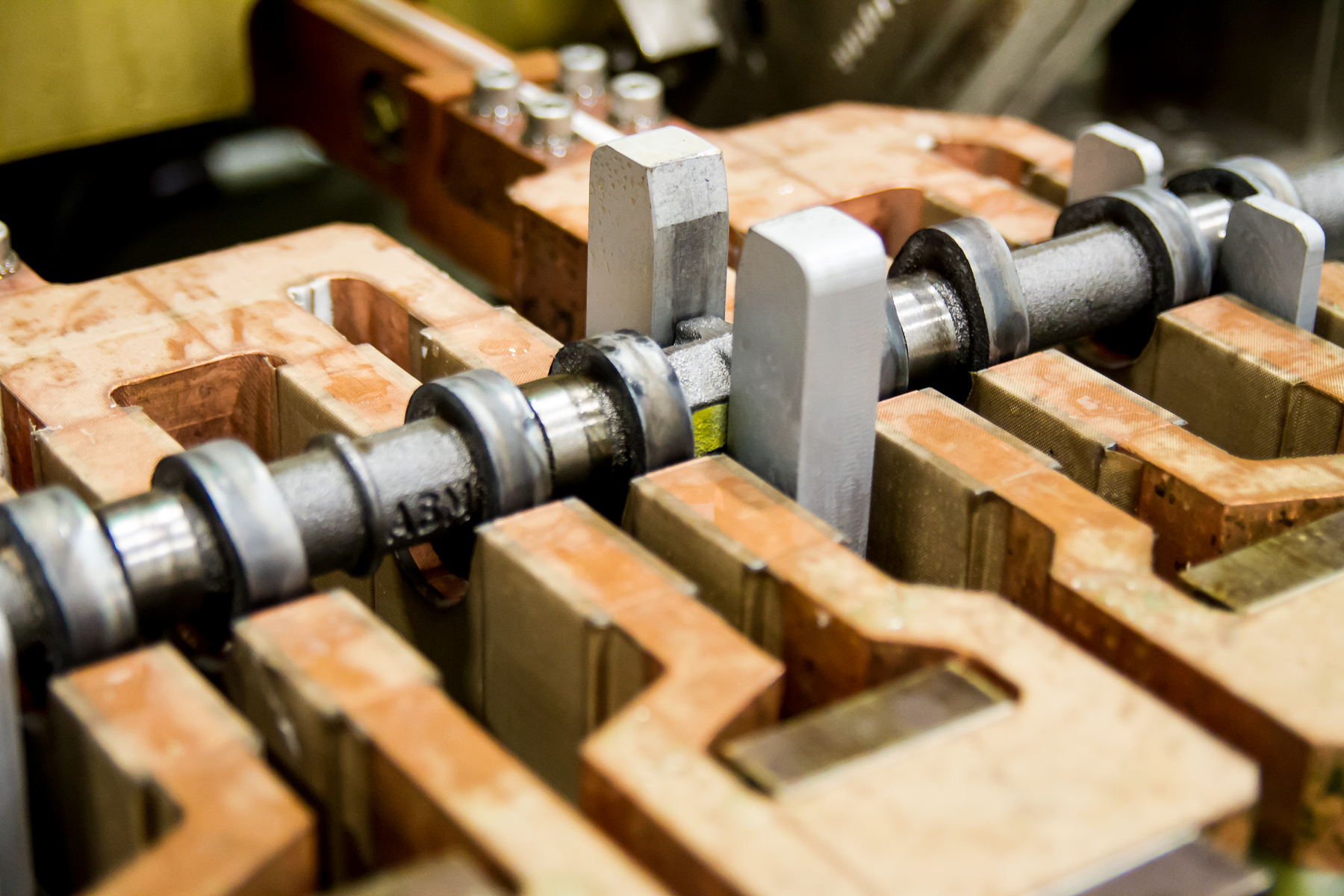

  • Robust CNC machined inductors. No moving powered parts.
  • Virtually no distortion – Less than 10 microns due to short heat times
  • Potentially eliminate post straightening operation
  • Dramatically reduced need for aggressive post harden grinding
  • Reduced sensitivity to geometric deviations and cam positioning compared to scan hardening processes
  • Improved microstructure of hardened material
  • True contour pattern

Reduced Downtime

  • Production ready “quick change” pallet assembly for fast coil changeover
  • Improved tooling life
  • Modular design permits fast part changeovers

Reduced Operating Costs

  • Substantially reduced operating cost compared to scan hardening
  • Substantially reduced maintenance cost
  • 50% less energy consumption compared to conventional induction heat treating

Accessories

  • Overhead gantry or robotic material handling system
  • Quick-change pallet cart
  • Tooling storage system
  • Process monitoring signature package
  • Mist collection system
  • Automatic quench concentration system
  • Automatic deionized water filling
  • Programmable machine start-up
REQUEST A QUOTE »

Inductoheat

32251 North Avis Drive, Madison Heights, MI 48071

Tech Specs

Machine Dimensions 124.5 ” W (3162.3 mm) x 98 ” (2489.2 mm)
Weight 6800 lbs. (3085 kg)
Production Capacity 90 Parts Per Hour
Power Output 150 kW – 300 kW
Output Frequency 10 kHz – 30 kHz
Work Piece Type Automotive Camshafts
Coil Pallets 1 SHarP-C™ Coil Pallet

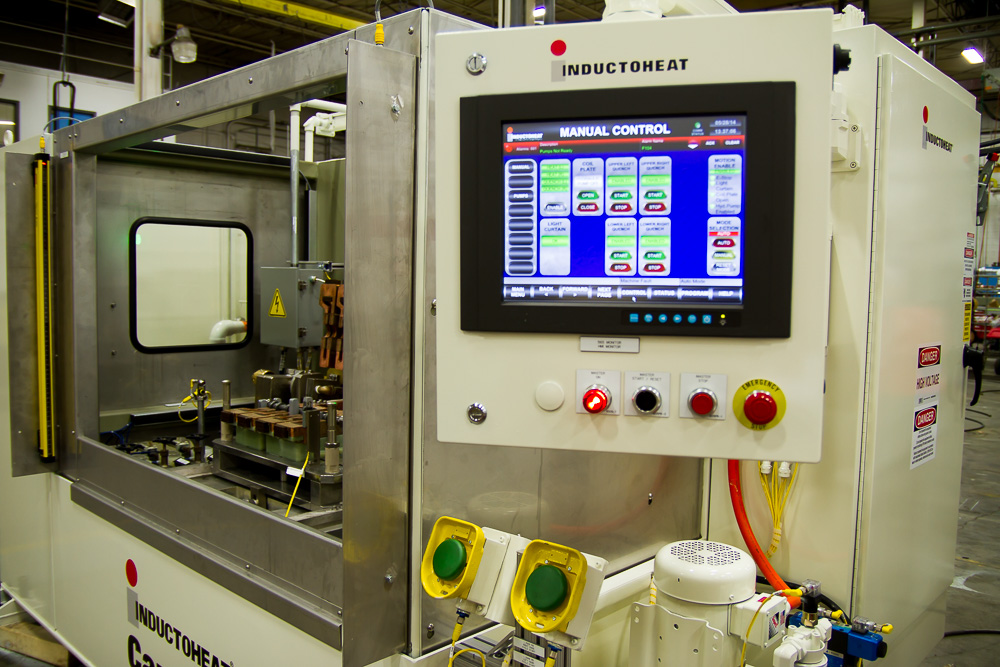

Controls Standard Allen Bradley Compact Logix PLC (other control packages available)
